Collaborative Robots-Space

Collaborative Robots

Collaborative Robots

C-SERIES

复制标题链接

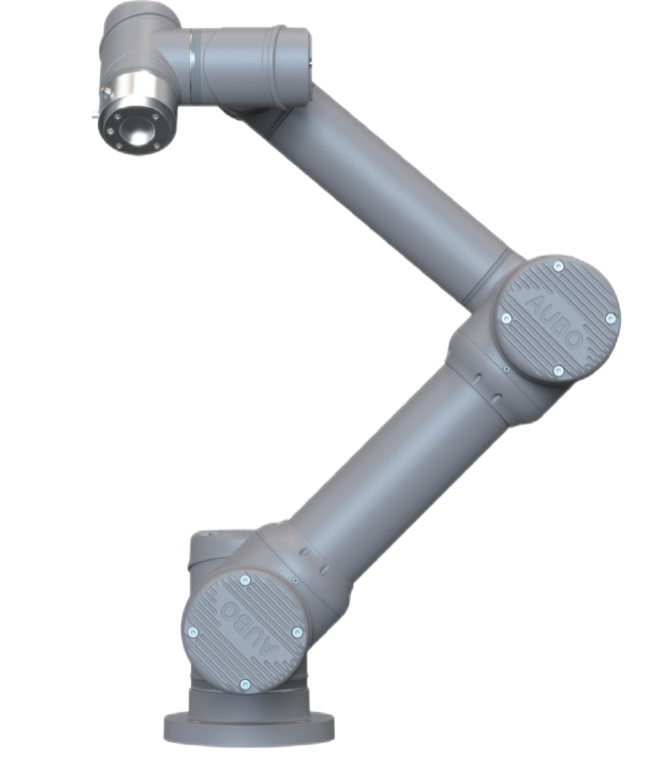

AUBO-C5

AUBO-C5

复制标题链接

Load:5kg

Weight:24kg

Measuring range:±0.1mm

Width of the frame:886.5mm

iH-SERIES

复制标题链接

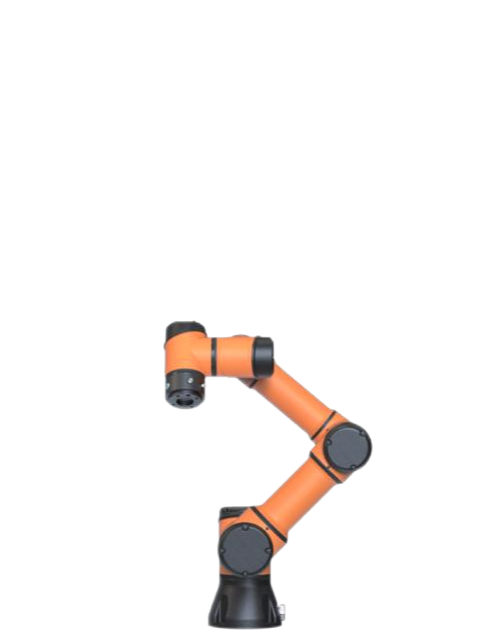

AUBO-i3H

AUBO-i3H

复制标题链接

Load:3kg

Weight:16kg

Measuring range:±0.02mm

Width of the frame:625mm

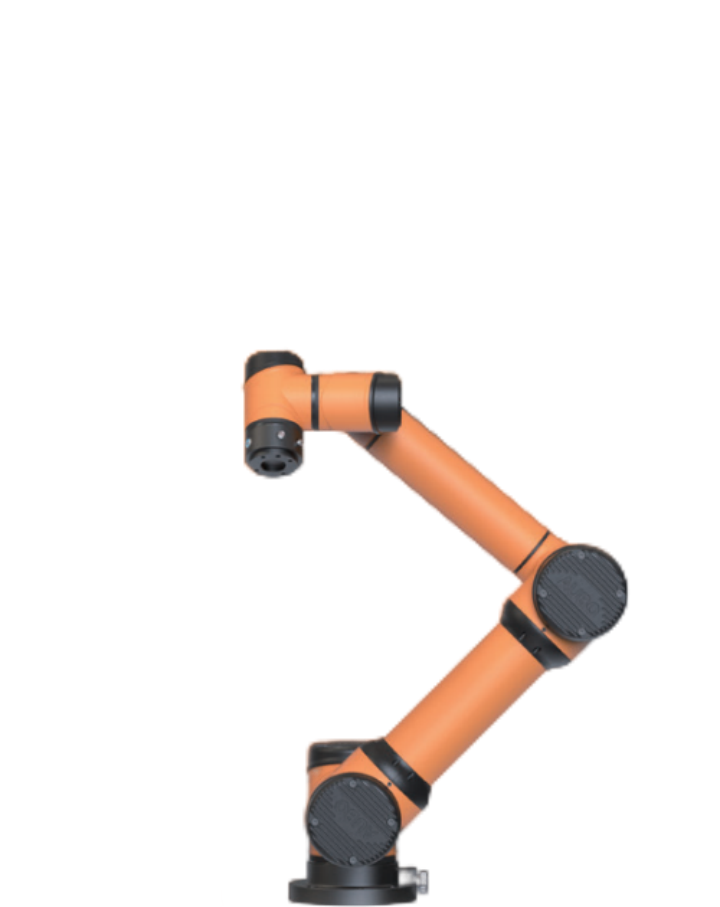

AUBO-i5H/i7H

AUBO-i5H/i7H

复制标题链接

Load:5kg/7kg

Weight:24kg

Measuring range:±0.02mm

Width of the frame:886.5mm/786.5mm

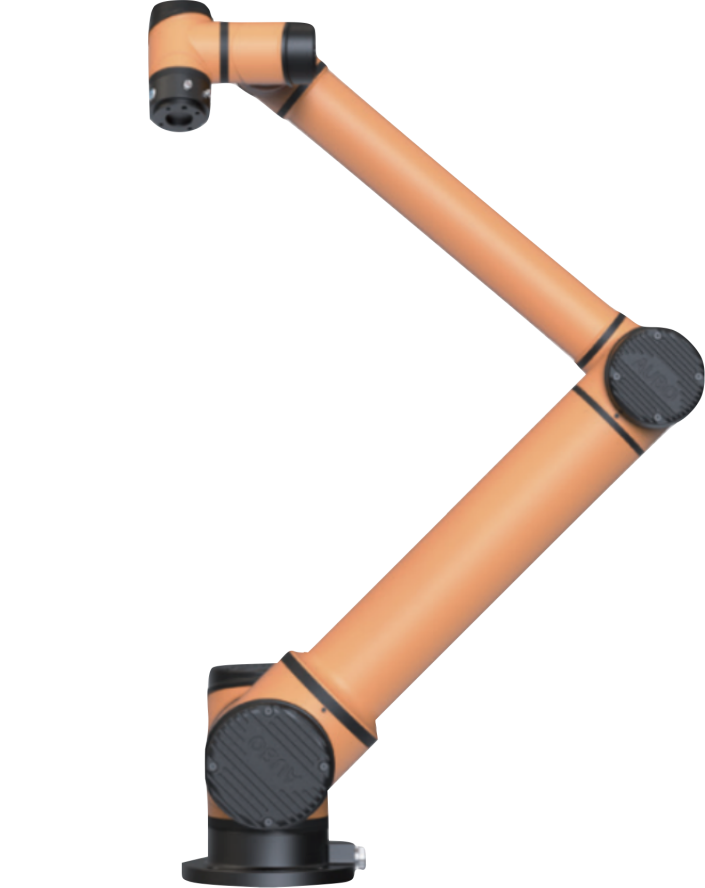

AUBO-i10H/i12H

AUBO-i10H/i12H

复制标题链接

Load:10kg/12kg

Weight:38.5kg/40kg

Measuring range:±0.03mm

Width of the frame:1350mm/1250mm

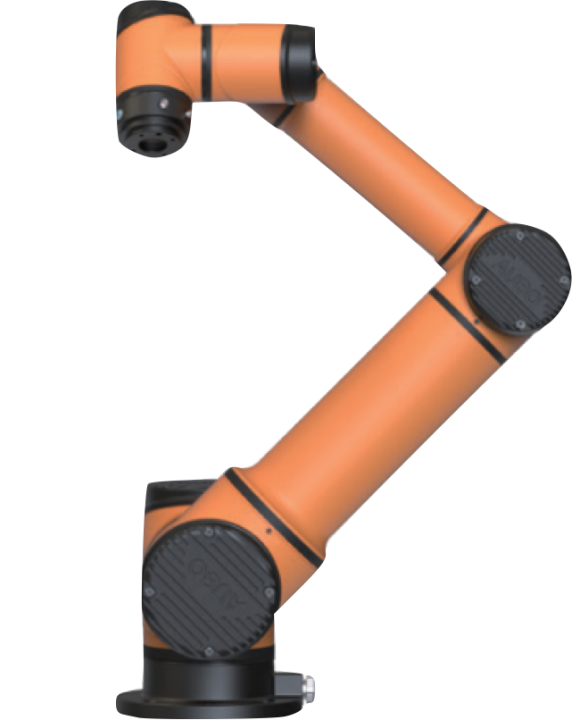

AUBO-i16H

AUBO-i16H

复制标题链接

Load:16kg

Weight:38kg

Measuring range:±0.03mm

Width of the frame:967.5mm

iS-SERIES

复制标题链接

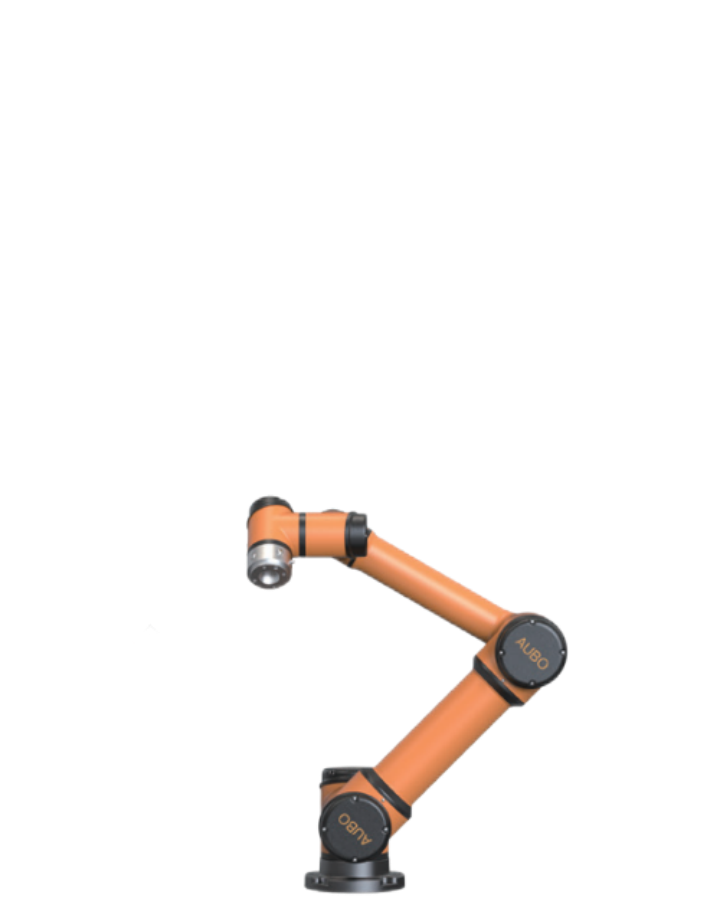

AUBO-iS7

AUBO-iS7

复制标题链接

Load:7kg

Weight:21.5kg

Measuring range:±0.02mm

Width of the frame:886.5mm

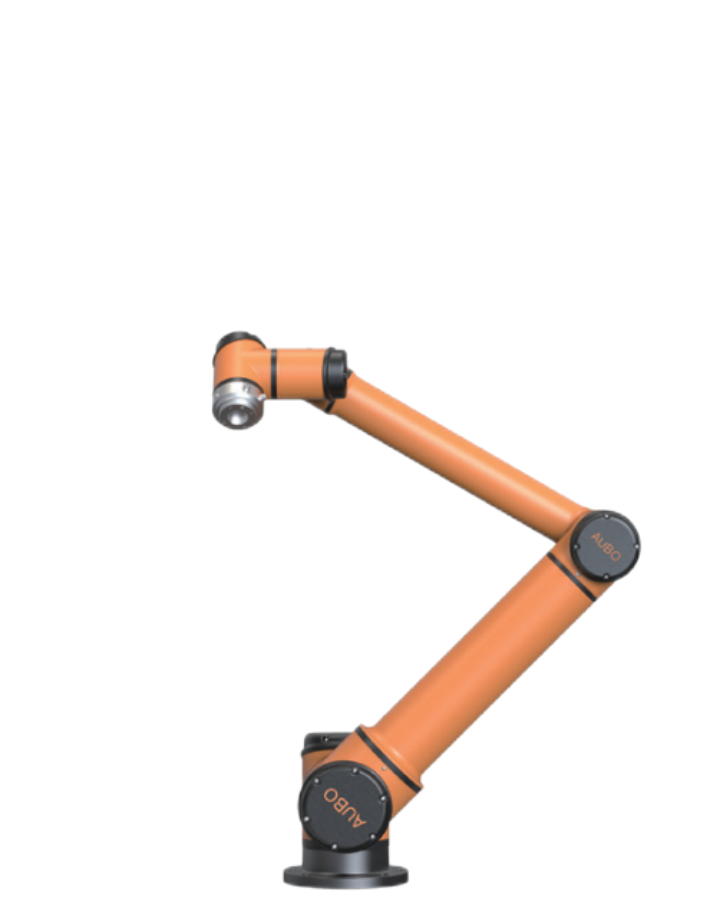

AUBO-iS10

AUBO-iS10

复制标题链接

Load:10kg

Weight:36kg

Measuring range:±0.03mm

Width of the frame:1300mm

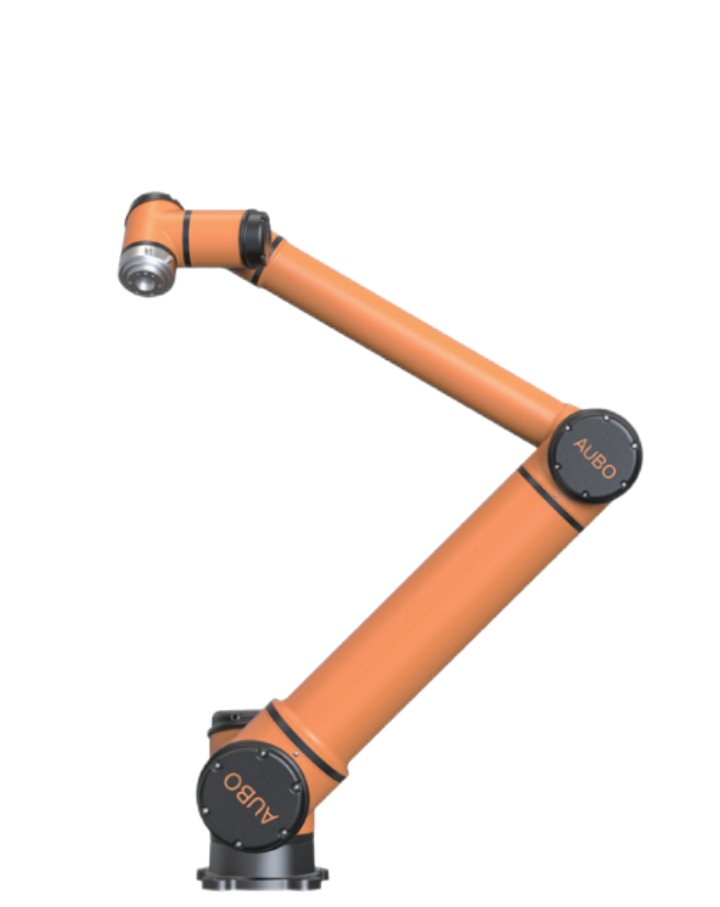

AUBO-iS20

AUBO-iS20

复制标题链接

Load:20kg

Weight:64kg

Measuring range:±0.05mm

Width of the frame:1647mm

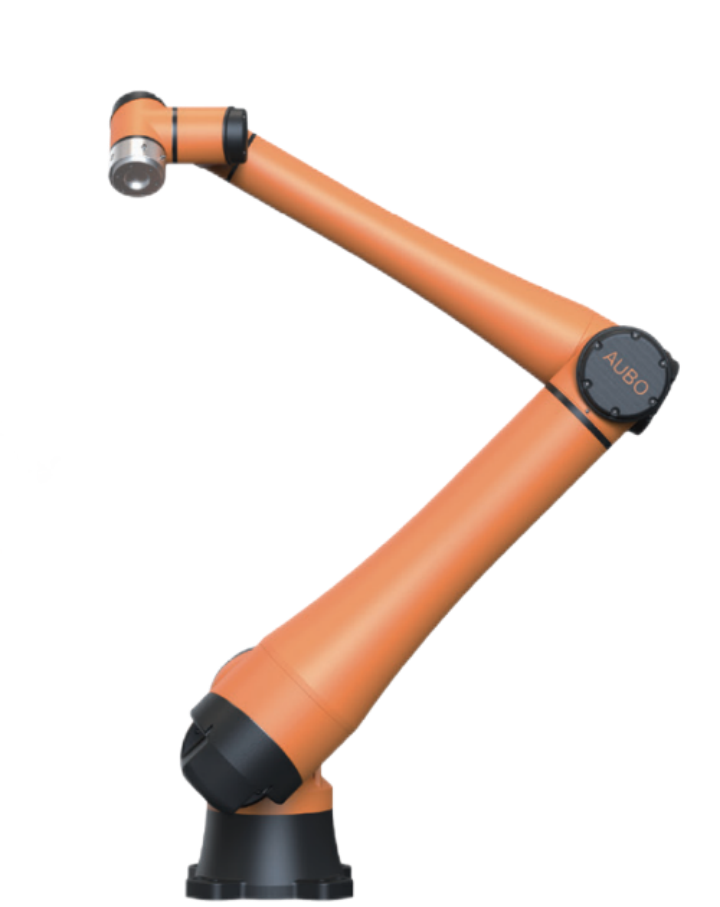

AUBO-iS35

AUBO-iS35

复制标题链接

Load:35kg

Weight:150kg

Measuring range:±0.05mm

Width of the frame:2100mm

Composite Robot

复制标题链接

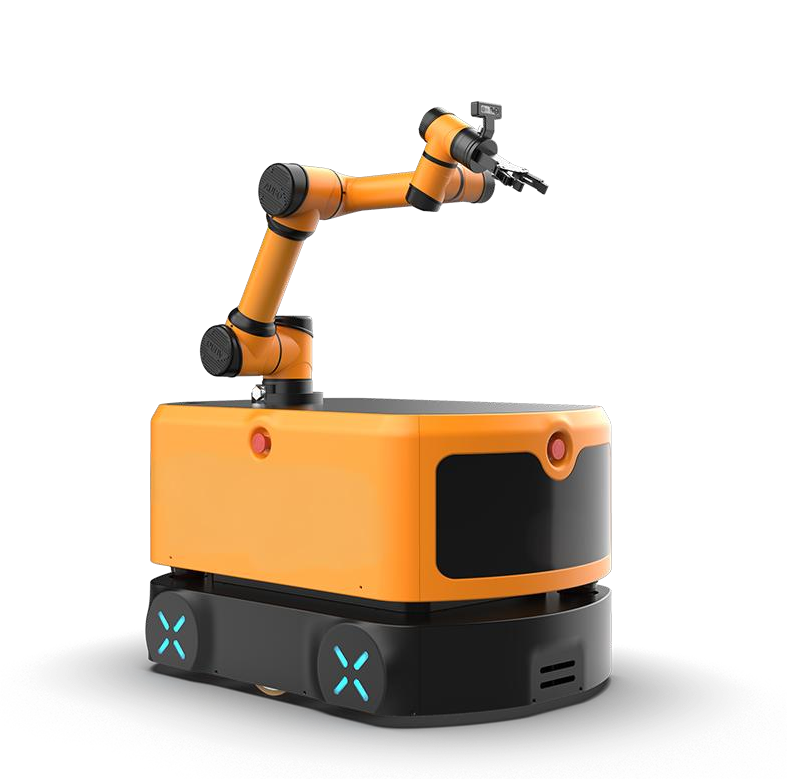

SP-COBOT Max

All-in-one control system

All-in-one control system

Simple and easy to use

Simple and easy to use

Direct information delivery

Direct information delivery

Safe scheduling

Safe scheduling

Flexible expansion

Flexible expansion

Collaborative operation

Collaborative operation

Basic Parameters

Dimensions (L*W*H)

1000*700*600mm (excluding height of the mechanical arm), tolerance ±2mm

Load Surface Dimensions (L*W)

650*620mm, tolerance ±2mm

Self-weight

250Kg (excluding mechanical arm)

Maximum Load

300Kg (including mechanical arm and load)

Drive Method

Dual-wheel differential drive

Number of LiDAR Sensors

2

Maximum Speed

1.3m/s

Working Speed

Forward: 1.0m/s (configurable), Backward: 1.0m/s (configurable)

Turning Radius

0mm

Rotational Radius

550mm

Climbing Ability

6°

Obstacle Height

10mm

Gap Width

30mm

Ground Clearance

25mm

Walking Aisle Width

≥ 900mm

Turning Aisle Width

≥ 1300mm

Station Positioning Accuracy

±10mm

Ground Leveling Accuracy

6mm

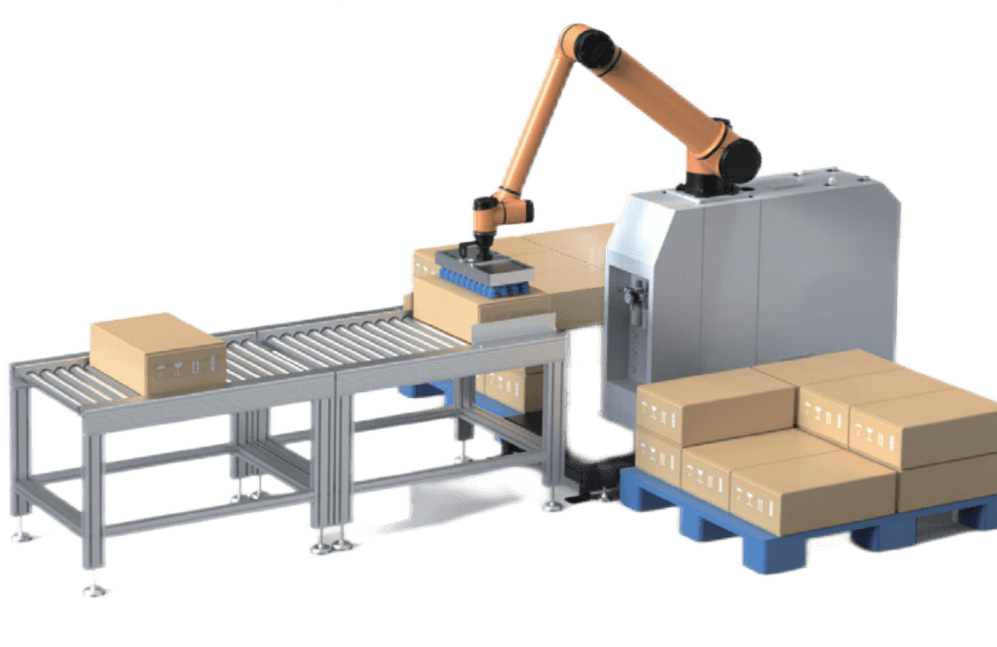

Palletizing Workstaion

复制标题链接

Palletizing Workstaion

All-in-one control system

All-in-one control system

Simple and easy to use

Simple and easy to use

Direct information delivery

Direct information delivery

Safe scheduling

Safe scheduling

Flexible expansion

Flexible expansion

Collaborative operation

Collaborative operation

Basic Parameters

Load Capacity

20kg/25kg

Working Radius

1647mm

Vertical Reach

Stacking height = 2300mm

Stacking Speed

Stacking speed varies with load changes

Repeatability

±0.05mm

Communication Method

Modbus TCP

IP Rating

IP54

Temperature Range

0-50°C

Maximum Power Consumption

3000W

Rated Voltage

Single-phase 220V

Overall Weight

578kg

Maximum Pallet Size

1200mm × 1200mm

External Sensor Type

NPN

Application Scenario
